Application:
The perfume capping machine is a kind of clamping type cap closing machine.Its suitable for cap closing of spray type caps.
Features:
1,Adopt pneumatic drive, without the electrical power, the whole
machine is composed of machine body, table surface, clamping device
and pneumatic control system.
2,It is a kinds of clamping type cap closing machine, use the
scalable method to close the cap and fasten it on the edge of
bottle mouth, even cap closing with good sealing performance, lock
mouth fastness and beautiful, accurate cap positioning without
abrasion on the surface, convenient operation and maintenance, high
speed.
3, Suitable for cap closing of spray type caps, such as perfume bottles, oral liquid bottles, ampere bottles such as aluminum cover lock mouth of the bottle. It use to seal valve cover of all kinds of perfume bottle, widely used in the beverage and perfume packaging lines.
Specification:

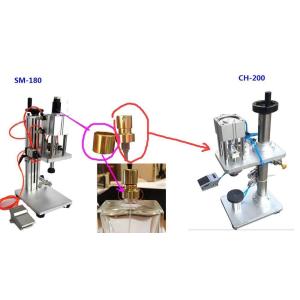

Model | SM-180 |
| Screw speed | 20-200 times/min |
| Material | stainless steel, pure aluminium |
| Screw diameter | 15mm,17mm,20mm,22mm |
| Air pressure | 0.4-0.6MPa |
| Bottle height | 5-200mm |
| Air consumption | 0.5m/min |
Dimension | 30*35*60CM |
| Net Weight | 15KG |

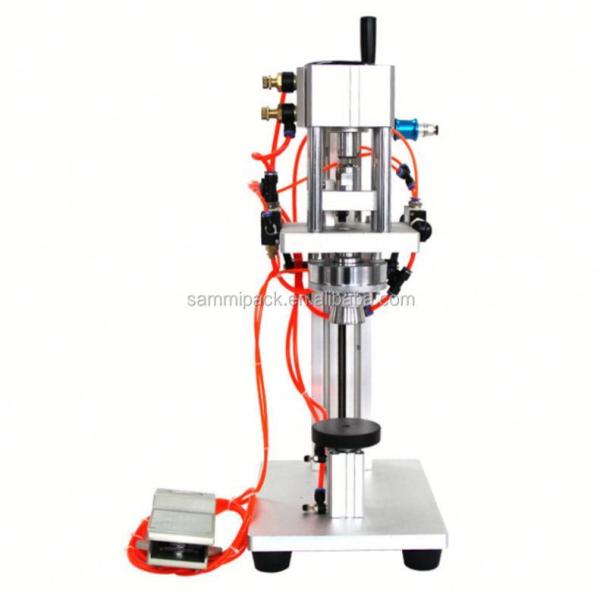

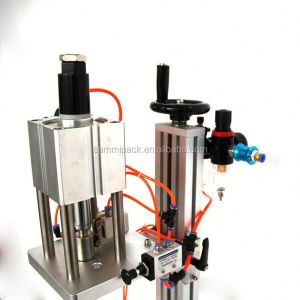

Machine picture:














|
