This electromagnetic induction sealing technology is the advance
sealing which was recognized
by modern international. It,s the most advance technology for
medical,food, oil,cosmetic,
chemical,pesticide bottle sealing at present.It adopt several
newest development technology, the technology
stand advance in the industry. The Core spare part adopt
international famous brand. Product will be check
seriously before leaving from factory. Quanlity is reliable,it,s
the best choice product for customer.
Suitable for sealing small-caliber plastic and glass bottles with
threaded flat caps. It is not suitable for metal, threadless caps,
high caps with voids, Suitable for continuous sealing operation in
large batch production. Ideal sealing equipment in medicine,
pesticide, food, cosmetics, lubricant and other industries.
Suitable for medical bottles, health products, plastic bottles,
aluminum foil.
Feature:
1.The power of switching power supply can be manually adjusted,
with digital display thermometer.
2.The performance of advanced AC speed regulating motor is reliable
and the transmission is stable.
3.Automatic aluminium foil sealing machine has a closed-loop
stepless speed change system,
4. With intelligent induction switch, which can intelligently
convey products,
5. Fully automatic detection and diagnosis, all-air cooling and
heat dissipation.
6.Sealing speed is fast, it is suitable for large scale production.
7.Stainless steel shell in appearance, it,s beauty and generous;
8.Easy to operate, good sealing quality, continue working. Work principle
The machine operates on the principle of electromagnetic induction:
The aluminum foil on the bottle top is highly
heated instantaneously and melted so that the bottle mouth is
closely wrapped and sealed.
Operating instruction 1, Put the induction sealer on the table,plug in the machine. Must
pay attention not to put the sealing head(handle head) on the
machine.
2, Turn on the machine,the power light flashes red.
3, Put sealing head smoothly on the bottle cap, press the button on
the handle, power light flashes red and hear a bee sound.
( Note: the button on the handle work once at a time, it can not
keep pressing on button, or it will work continuously without
stop.)
4, Power light went out, bee sound stop, it means the sealing is
finished.
5, Rotate the heating time button,the sealing time can be
adjustable. Bottle neck diameter 20mm ,
Heating time adjust to 1.5; Bottle neck diamter 50mm,Heating time
adjust to 2(Note: for the thickness difference of bottle cap ,
heating time should be lengthen in accordance with thickness of
bottle cap) Note:when sealing, the sealing bottle mouth must be put in the
middle of the induction head to ensure the sealing
quanlity.
The material of bottle and aluminium foil should be the same and
tighten the foil inside the cap with bottle mouth.
Technical parameters
Type
GLF-1800
Power supply
220V 50HZ
Power
1.3KW
Sealing Diameter
φ50-120mm
Suitable height of bottle
40-300mm
Sealing speed
0-15m/s
Producting capacity
250P/S(φ40mm bottle dia.)
Weight
45KG
Overall size
115×48×40cm
Mode of operation
Plastic Console Continuous convey

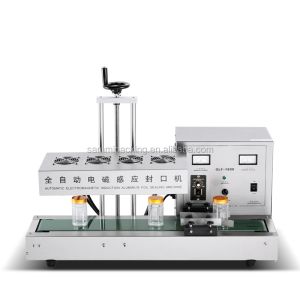

Pictures of continuous induction sealing machine

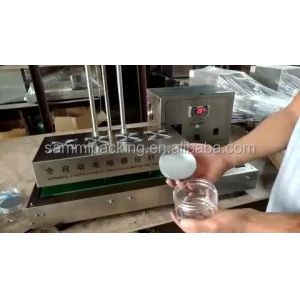

♦Bottle sample and sealing result
Packaging & Shipping
Payment Term:
T/T, L/C, Western Union, PayPal, Credit card, trade assurance
Package:
export standard wooden case & cartons, honeycomb paperboard case
Delivery Time:
1-3 days after payment
transportation:
by sea, by air, by express(DHL, FEDEX,TNT,4PX,ARAMEX,EMS etc)
Shipping Time:
A, by express:about 5 days to arrive shipping destination,door to
door service
B, by air: about 7 days to destination airport
C, by sea:15-30 days to destination port
Our Services
1)Warranty Time:1 year, within this period we offer spare part replacement freely
if there are any Non-artificial damage on them.
2) Quality: Quality of products will be strictly checked and every machine
will be test to ensure it can works well before packaging.
3) Technical services: We will keep contacting with our customers all the time after
selling out the machine. Please contact us without hesitation if
you need any help on machines.
4) File Services: We offer instruction manual and video to teach you how to using
and testing machine.
5) Accessories: We supply spare parts with competitive price after warranty time.
