Feature:
1.Reasonable design, compact shape, simple operation, partly adopt
the German FESTO /Taiwan AirTac pneumatic components.
2. The contact part with the material is all made of 304 or 316
stainless steel, meet the GMP requirements and Food grade.
3. Filling volume, filling speed can be adjustable, filling
accuracy is high.
4. Adopt the anti-drip, Anti-drawing and lifting filling device.
Application:
Widely used by industries in the Food & Beverage, Cosmetics, Personal
Care, Agricultural, Animal Care, Pharmaceutical, and Chemical
fields
.And it is an ideal device for low viscosity fluid filling.
Principle

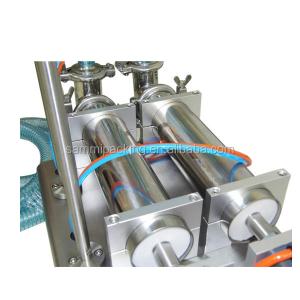

GFA series of semi-automatic filling machine piston filler. Driven
by a cylinder and piston made from materials with FIVE-way valves
control the flow of materials, and magnetic reed switch control
cylinder itinerary can be regulated filling volume.
. Rational design of the aircraft, model compact, easy to operate,
are used pneumatic part of Germany and Taiwan AirTac FESTO the
pneumatic components.
. Some contact materials are used 316 L stainless steel materials,
in line with the GMP requirements.
. Filling volume and speed of filling can be arbitrary regulation,
filling high accuracy.
Technical Parameters:
Machine model | GFA-W-2Y -100 | GFA-W-2Y -300 | GFA-W-2Y -500 | GFA-W-2Y -1000 | GFA-W-2Y 3000 | GFA-W-2Y -5000 |
Filling speed | 10-35n/min(take water for example) | |||||
Filling range | 10-100ml | 30-300ml | 50-500ml | 100-1000ml | 300-3000ml | 500-5000ml |
Air pressure | 0.4~0.6mpa | |||||
Filling error | ±1% | |||||
Machine size | 806(L) × 180(W) ×690(H)mm | 880(L) ×230(W) ×665(H)mm | 880(L) × 230(W) ×665(H)mm | 1065 (L) ×230(W) ×665(H)mm | 1250(L) ×400(W) ×300(H)mm | 1390(L) ×420(W) ×380(H)6mm |
Machine weight | 30 Kg | 35Kg | 40Kg | 45Kg | 60 Kg | 80 Kg |
Machine can offer customized according to customer request




|
