1.Reasonable design, compact shape, simple operation, partly adopt
the German FESTO /Taiwan AirTac pneumatic components.
2. The contact part with the material is all made of 304 or 316
stainless steel, meet the GMP requirements and Food grade.
3. Filling volume, filling speed can be adjustable, filling
accuracy is high.
4. Adopt the anti-drip, Anti-drawing and lifting filling device.
Application:
Widely used by industries in the Food & Beverage, Cosmetics, Personal
Care, Agricultural, Animal Care, Pharmaceutical, and Chemical
fields
.And it is an ideal device for low viscosity fluid filling.
Principle

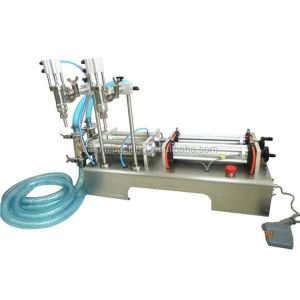

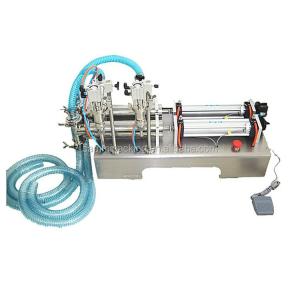

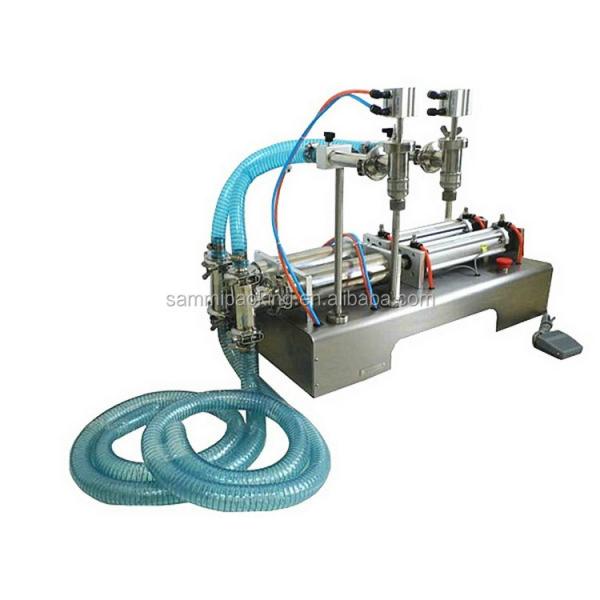

GFA series of semi-automatic filling machine piston filler. Driven
by a cylinder and piston made from materials with FIVE-way valves
control the flow of materials, and magnetic reed switch control cylinder itinerary can
be regulated filling volume. . Rational design of the aircraft, model compact, easy to operate,
are used pneumatic part of Germany and Taiwan AirTac FESTO the pneumatic
components. . Some contact materials are used 316 L stainless steel materials,
in line with the GMP requirements. . Filling volume and speed of filling can be arbitrary regulation,
filling high accuracy.
Technical Parameters:
Machine model
G1WY-100
G1WY-300
G1WY-500
G1WY-1000
G1WY-3000
G1WYG-5000
Filling speed
10-35n/min(take water for example)
Filling range
10-100ml
30-300ml
50-500ml
100-1000ml
300-3000ml
500-5000ml
Air pressure
0.4~0.6mpa
Filling error
±1%
Machine size
806(L) × 180(W) ×690(H)mm
880(L) ×230(W) ×665(H)mm
880(L) × 230(W) ×665(H)mm
1065 (L) ×230(W) ×665(H)mm
1250(L) ×400(W) ×300(H)mm
1390(L) ×420(W) ×380(H)6mm
Machine weight
42 Kg
45Kg
48Kg
52Kg
64 Kg
86 Kg
Machine can offer customized according to customer request
