100-1000ml Double Heads Beard Oil Filling Machine Liquid Piston
Filler
Double Head Pneumatic Liquid Filling Machine
Features:
1.Reasonable design, compact shape, simple operation, partly adopt
the German FESTO /Taiwan AirTac pneumatic components.
2. The contact part with the material is all made of 304 or 316
stainless steel, meet the GMP requirements and Food grade.
3. Filling volume, filling speed can be adjustable, filling
accuracy is high.
4. Adopt the anti-drip, Anti-drawing and lifting filling device.
Application:
Widely used by industries in the Food & Beverage, Cosmetics, Personal
Care, Agricultural, Animal Care, Pharmaceutical, and Chemical
fields
.And it is an ideal device for low viscosity liquid or fluid
filling Such as :
1.Food: Edible Oil, Milk, Soymilk, Juice, vineger, soy sauce liquid
and etc
2.Chemical: Liquid Detergent, Liquid Foam, Body Lotion, Bath
Liquid, Liquid Medicine,
Lube Oil and etc.
Principle
GFA series of semi-automatic filling machine piston filler. Driven
by a
cylinder and piston made from materials with FIVE-way valves
control the flow of
materials, and magnetic reed switch control cylinder itinerary can
be regulated
filling volume.
. Rational design of the aircraft, model compact, easy to operate,
are used
pneumatic part of Germany and Taiwan AirTac FESTO the pneumatic
components.
. Some contact materials are used 316 L stainless steel materials,
in line with
the GMP requirements.
. Filling volume and speed of filling can be arbitrary regulation,
filling high
accuracy.
Technical Parameters:
Machine model | G1WY-2Y-100 | G1WY-2Y-300 | G1WY-2Y-500 | G1WY-2Y-1000 | G1WY-2Y-3000 | G1WYG-2Y-5000 |
Filling speed | 10-35n/min(take water for example) |
Filling range | 10-100ml | 30-300ml | 50-500ml | 100-1000ml | 300-3000ml | 500-5000ml |
Air pressure | 0.4~0.6mpa |
Filling error | ±1% |
Machine size | 806(L) × 180(W) ×690(H)mm | 880(L) ×230(W) ×665(H)mm | 880(L) × 230(W) ×665(H)mm | 1065 (L) ×230(W) ×665(H)mm | 1250(L) ×400(W) ×300(H)mm | 1390(L) ×420(W) ×380(H)6mm |
Machine weight | 42 Kg | 45Kg | 48Kg | 52Kg | 64 Kg | 86 Kg |
Machine can offer customized according to customer request

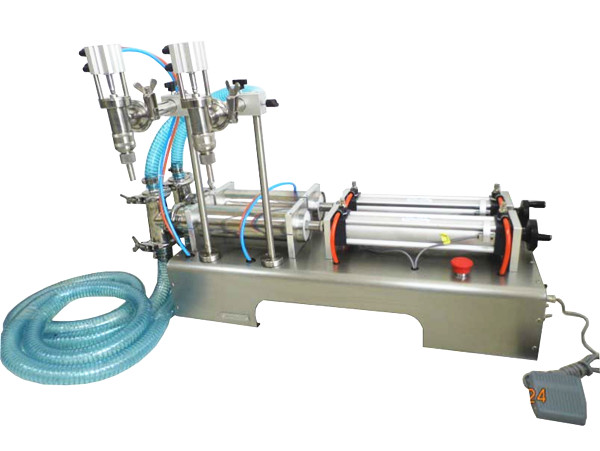

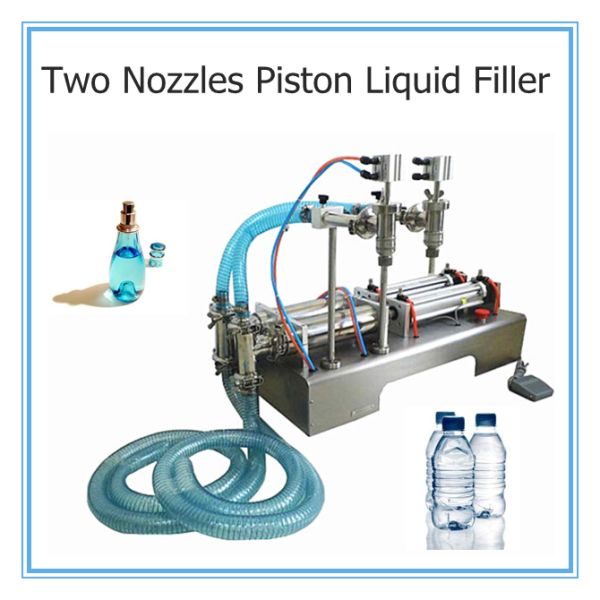

Product Picture
Packaging & Shipping
Packaging & Shipping
Packaging & Delivery
1, Packaging Detail: standard export wooden case package or carton.
2, Leading time: 1-3 days
3, Delivery time: depend on ways of shipping
Shipping & payment
1,ways of shipping:
1) Small machine will shipped by express (DHL, EMS, FedEx and so
on) or air
2) Big order and big machine shipped by sea (FOB Shenzhen/CIF)
2, payment methods
We accept LC, TT, West Union , Papal or MoneyGram
Our Services
Our Services
1) Any inquiries will be replied within 12 hours.
2) Quality of products will be strictly checked and every machine will
be test to confirm whether it works well before packing.
3) All the machines have 1 year warranty and life time maintenance.
4) We have professional engineers , after-sales staff and a
high-quality sales team to service you.
5) We have a sales team who are good at English to ensure zero
communication barriers.
